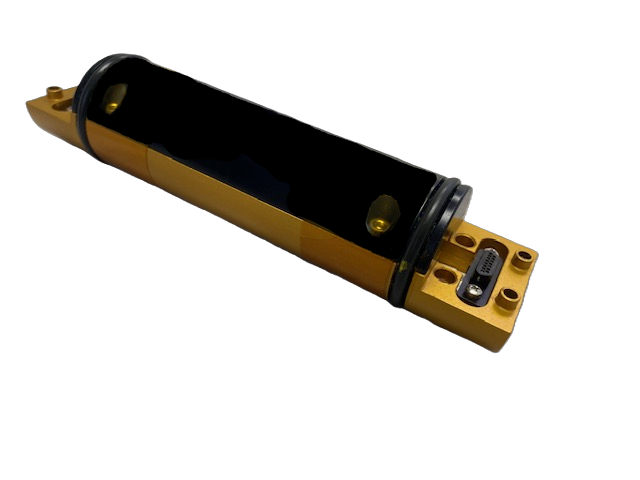

ConversionLink

Drop-in Replacement for Tensor-compatible Power Supplies

The Vertex Single Output Power Supply Module delivers rugged reliability and exceptional performance for demanding downhole, industrial, and high-temperature environments. Designed as a drop-in replacement for Tensor-compatible power supplies, it combines compact form factor, robust electrical protection, and superior efficiency — ensuring consistent power delivery and extended operational life even under extreme conditions. Built with high-efficiency DC-DC conversion, ConversionLink maximizes battery runtime and system uptime. It's engineered to operate seamlessly with one or two batteries or our PowerLink Generator, offering full flexibility across your power configurations.

Key Features

Wide Input Range: 14–50 VDC supports diverse system buses and battery packs
Robust Output: +29 VDC @ 1.2 A continuous for stable single-rail systems
Ultra-low Ripple: < 4 mV RMS to protect sensitive electronics and sensors
Low Noise: < 100 mV p-p for cleaner signal integrity

Performance Benefits

Ruggedized: Tested to 1000 G shock and 20 G vibration, all axes
High-Temp Ready: Reliable from –40 °C to +175 °C for harsh environments
Compact: 10" × 1.25" × 0.625" with a standard 15-socket MDM connector
Drop-in Compatible: Direct replacement for Tensor-compatible supplies

ConversionLink Specifications

Technical Specifications

Input Voltage: 14 – 50 VDC

Output: +29 VDC @ 1.2 A

Ripple: < 4 mV RMS

Noise: < 100 mV (Peak-to-Peak)

Dimensions: 10" L × 1.25" W × 0.625" H

Connector: 15-socket MDM

Shock: 1000 G, 0.5 ms half-sine, all axes

Vibration: 5–30 Hz; 30–1000 Hz, 20 G (all axes)

Operating Temperature: Up to 175 °C

*Specifications may be subject to design changes
