Vertex PowerLink - Coming Soon

Estimated release Q1 2026

Reduce Cost · Improve Reliability

The Vertex PowerLink was developed to be placed anywhere throughout an MWD string; allowing for key modules to be placed as close to the bit as possible. The Vertex PowerLink was developed to be field serviceable, enabling field personnel to easily swap and replace the rotating components of the tool.

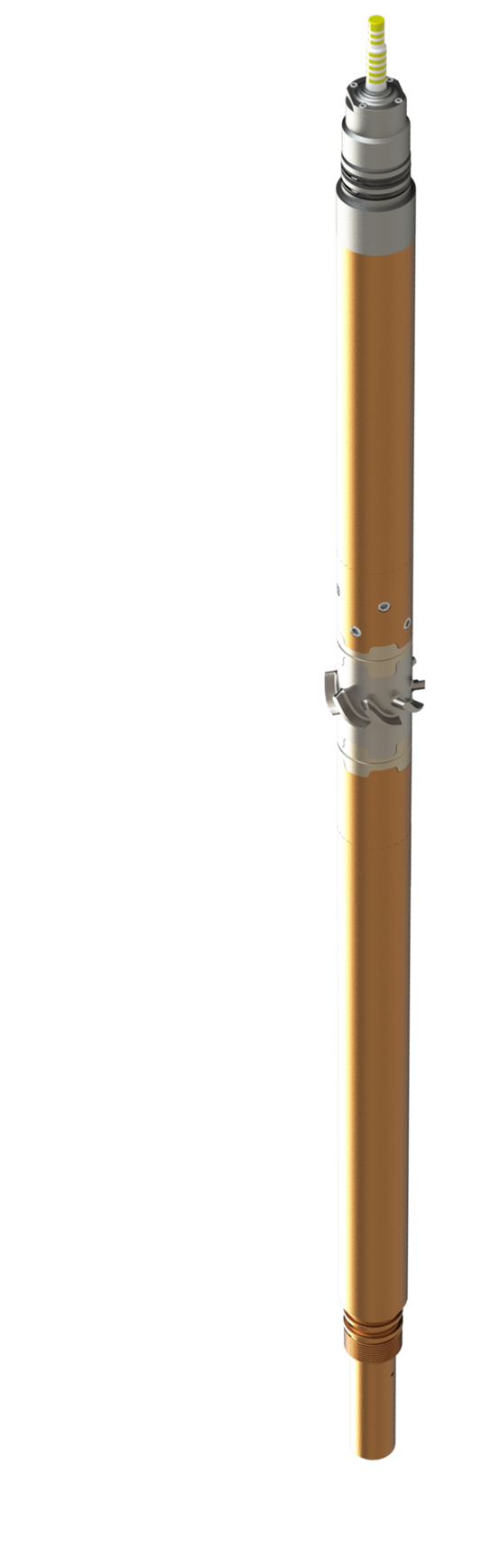

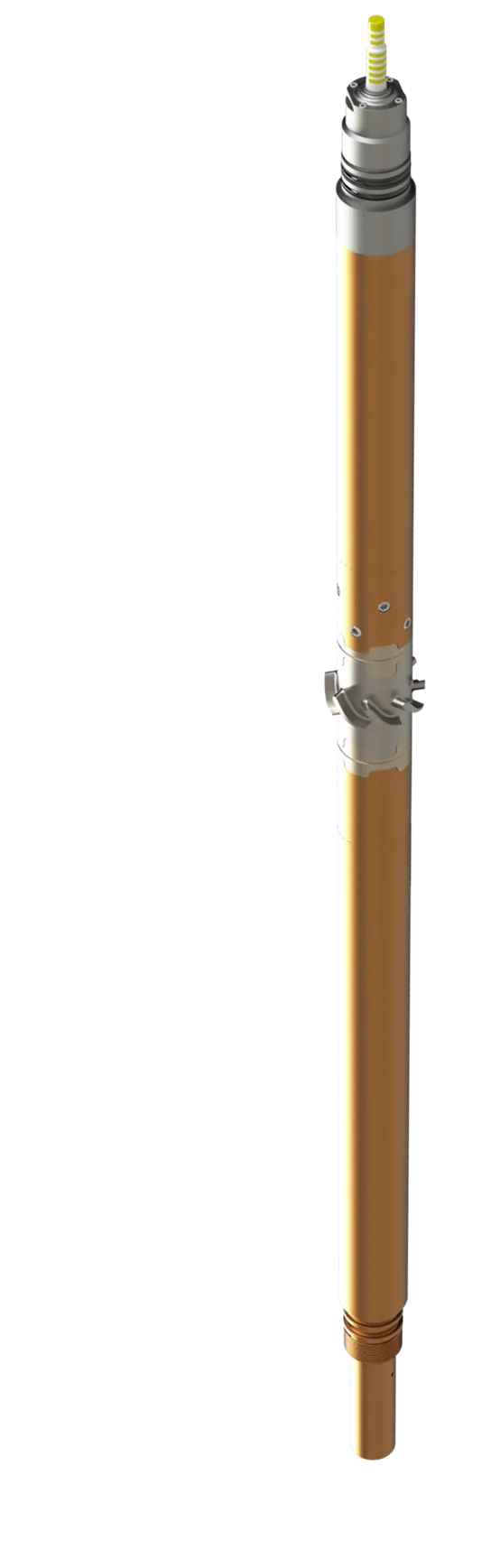

PowerLink Technology

PowerLink Specifications

Technical Specifications*

Length: 36.8 in (935 mm)
Peak Power Generation: 50W
Turbine OD: 2.5 in (63.5 mm)
Outer Diameter: 1.875 in (47.63 mm)
Max axial load static: 350 lbs (114kg)
Max torsional service load: 800 ftlb (1080 Nm)
Max Temperature: 365°F (185°C)
Connections: (Configurable upon request)
Collar ID considerations: Contact for details

*Specifications may be subject to design changes

Enhance Your MWD Operations

Discover how PowerLink technology can improve your drilling reliability and reduce costs through field serviceable power generation. Contact our specialists to learn more about optimizing your MWD string configuration.
